PREpleat® M11 HC Pleated Filters
The PREpleat M11 HC pleated filter enables a significant upgrade in collection efficiency over existing MERV 8 products.
Typical Applications Include – Commercial Buildings | Food and Beverage | Healthcare | Hospitality | Microelectronics | Schools and Universities
Description
PREpleat® M11 HC Pleated Filters
Product Overview
- Upgrade existing systems by up to 300% in efficiency against incoming particulate
- Upgrade existing prefilter plenums with the PREpleat M11 HC to increase the life of your more expensive final filters downstream
- Building owners and occupants using this filter will be significantly better protected from a bioaerosol hazard than with conventional filters
- Corrosion-resistant heavy metal backing
- Diagonal face strips for extra strength
Typical Applications Include – Commercial Buildings | Food and Beverage | Healthcare | Hospitality | Microelectronics | Schools and Universities

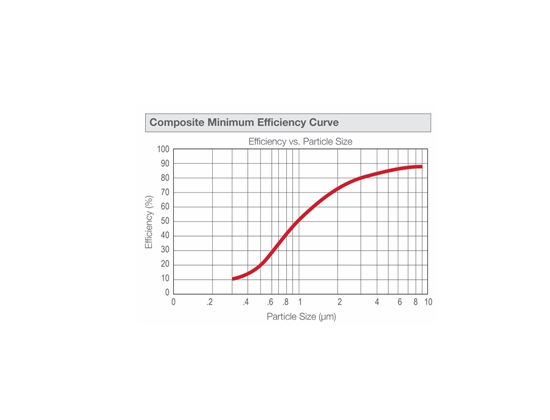

The PREpleat M11 HC pleated filters enable a significant upgrade in collection efficiency over existing MERV 8 products. A 25–30% average efficiency filter can be upgraded to 60–65% efficiency at roughly the same resistance levels, when this filter is utilized.
Media
Progressive density bi-component fibers

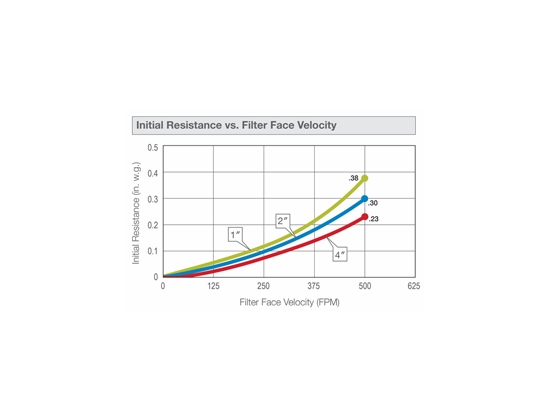

Airflow Resistance on 24″ x 24″ x 2″
30″ w.g. @ 2000 cfm (500 fpm)
Media Support
Diamond-shaped expanded metal
Pleat Design
V-Pleat design aids in pressure drop while reducing energy cost. Design allows for maximum airflow and Dust Holding Capacity (DHC) during the life of the filter.
Frame
Moisture-resistant clay coated frame.
Bi-component media
Ultra-high performance bi-component synthetic media contains electrostatically engineered tri-lobal fibers within homogenous domains of positive and negative Electret charges. These Electret charges in the bi-component fibers contribute to an ultra-high performance product.
Enhanced fibers
Electrostatically enhanced fibers are precisely structured into a progressive density gradient structure to enhance airflow through put with less resistance while providing high DHC and ultra-high efficiency during operational life.
Gradient media structure
Proprietary “Engineered Gradient Media Structure” enables larger incoming contaminants to be trapped in the prefilter layer, thus allowing the highly charged secondary layer to attract and hold smaller particulate. This increases the life of more expensive final filters downstream.
High efficiency at low pressure drop
This proprietary media, combined with AAF Flanders’ unique V-Pleat manufacturing design, equals the highest performance pleat available on the market today. The proprietary PREpleat M11 can provide an initial efficiency of MERV 11.
Filter Depth 1" 2" 4"
Media Type
Synthetic
Frame Material
Beverage Board
Special Size Available
Yes
Max Operating Temperature
180˚F (82˚C)
Efficiency
MERV 11
